To Factory Equipment Companies
Have you ever been anxious about space issues, such as insufficient free space after placement or no possible way to move devices from outside, when you propose large machines for a factory?
Device Layouter for Professional will solve your concerns by the following characteristics.
Room Layouter
This is to create your own building. Specify floor numbers above and under ground, and then create your rooms on each floor by simple operations.
You can create rectangular rooms, as well as polygonal ones.
It's possible to specify room information considering the final result, as you can switch between 2D and 3D environments.
2D DXF as Floor Layout
If you have a floor plan drawing from your building, you can place it on your floor as the basis of your room creation.
We support DXF format. The translation process is very simple.
Device Placement in 3D Viewer

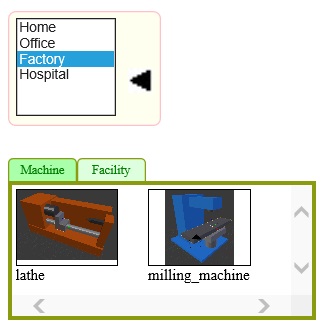

All the registered 3D geometries are shown at the left of the window. You can select one of these and place it in your layout.
It's possible to add your own data, instead of the pre-registered geometries. You can import any texture data attached to your geometry, which is valid for realistic rendering result.

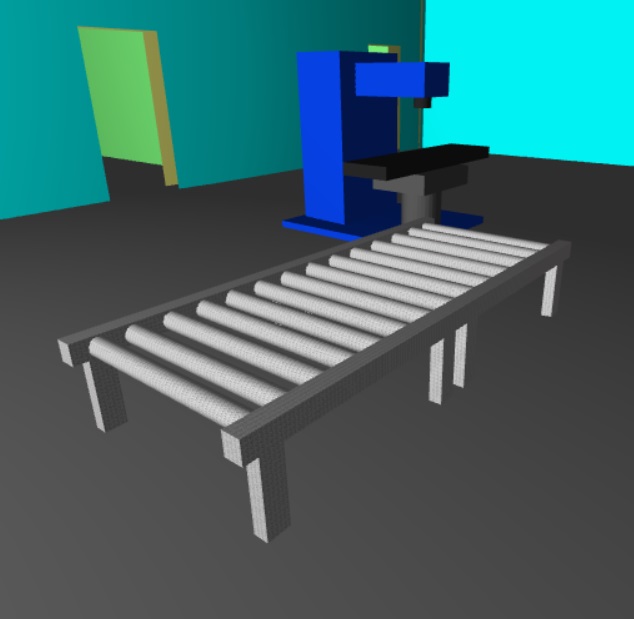

Layout Result Confirmation
You will confirm the whole appearance in your building, using view point change features.
Walk mode is available, which is to walk around keeping a specified eye height.

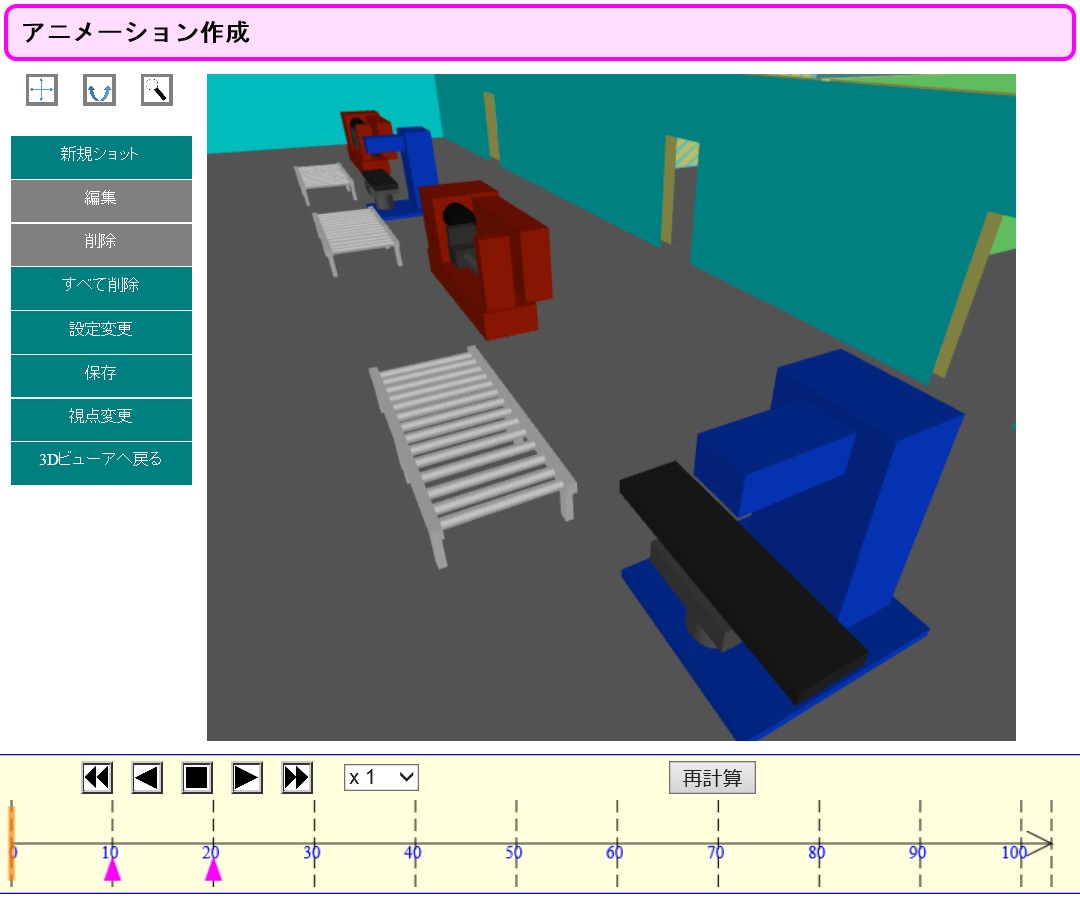

Animation
This is to create an animation which moves or rotates placed devices such as machines.
Dynamic collision detection during animation is available, which is useful for detailed analysis of machine placement possibilities, and so on.
Sharing Layout Result
Once you finish your data creation, you can upload the data to the cloud environment so that any person can access it easily. Any animation in the CG data is executable.
When you add a link for the data to your web page, your customers can see the characteristics of your products on the Web architecture. As one of sales activities, you can publish a data for your presentation to a contact person in your customer. It should facilitate your business discussion with less sales visits.
Free Trial
Tutorial will open.
You can try some features along with instructions.
To Register as User
Refer to Registration Page.
