3D Data Integration Details
Our free translator allows you to integrate your own 3D data with our system easily.
Collect 3D Geometries
Collect 3D data you want to use. You can integrate any data, as long as the file format is officially supported, collected in any way, such as from your 3D CAD system, your 3D CG library for your brochure, and a data sharing service. Create a folder hierarchy as shown in the picture, and place your 3D data, its texture image, and also the other image as an icon on the system.
Device Tab Design
Device tab is displayed at the left side of the system, and it shows all the items with a hierarchy.

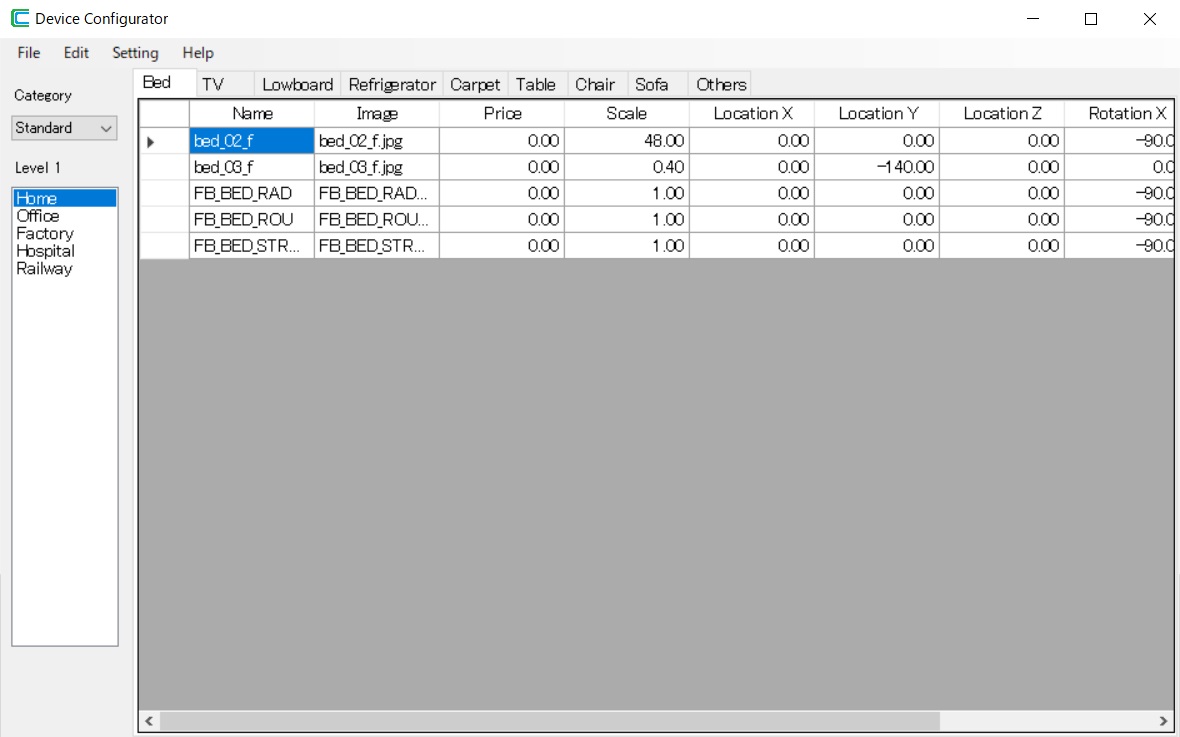

Device Configurator is designed to define a hierarchy on Device Tab, items on each tab, and their properties. Icon images are also defined here.
Data Translation and Upload

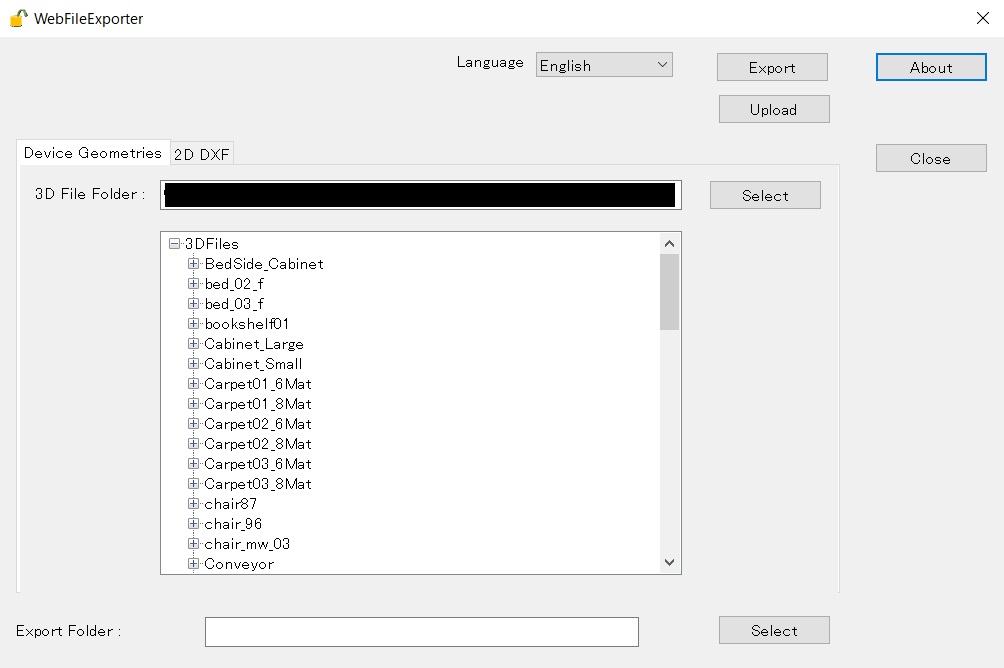

Exporter is designed to collect all the related files with regards to the settings defined in Configurator. 3D geometry files are translated as an unreadable format.
Upload button is to upload all the files to our server.
Availability On System
A hierarchy is shown as you define in Configurator, and all the items are shown as icons.
You can access all the items by changing the selection on the list box and the tabs. Selecting an icon and clicking on a floor, the selected item is added to your environment.
